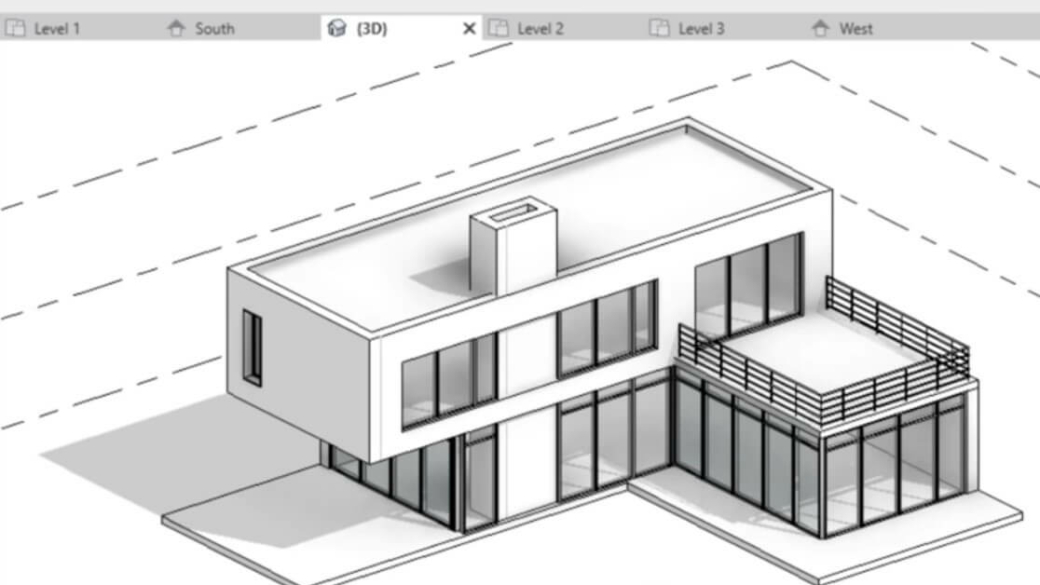

House on Revit

How to Unhide Elements in Revit?

How to Unhide Elements in Revit

If you are an architect, drafter, or design enthusiast, you’re likely all too familiar with Revit. This robust design software lays the foundation for creating intricate and precise 2D and 3D blueprints of buildings, houses and more. A notable feature of Revit is the concept of “elements” – a vital player in the creation of these exquisite designs.

Throughout your journey with Revit, there may be occasions when certain elements become hidden in the project due to a variety of reasons. But this guide is here to demystify the process of unhiding these elements.

In the following sections, we will delve into the types of elements used in Revit, common causes for these elements getting hidden, and detailed methods on how to uncover these hidden elements. Let’s embark on this journey to mastering the art of unhiding elements in Revit.

If you also want to know how to add a level in Revit, read this post.

Understanding Elements

To find out how to unhide elements in Revit, first we must understand what elements are. In Revit, “elements” are also referred to as “families”. Each family houses the geometric definition of the element as well as the parameters utilized by the element, effectively defining and controlling each instance of an element. All elements within a Revit project can be classified into three main categories: model elements, datum elements, and view-specific elements.

1. Model Elements

Model elements in Revit are aptly labeled as they figuratively and literally shape the architectural model. They represent the actual 3D geometry of a building, giving dimension and form to the elements of the house or structure under design. When you craft walls, windows or roofs in your design, you’re creating model elements.

Model elements are visible in relevant views of the model, helping to provide a realistic and multi-dimensional perspective of the building. This not only offers visual aid during the design process but also provides informative insights for stakeholders to comprehend the design specifics better. Some examples of models elements are:  walls, windows, doors, roofs, slabs, ramps, sinks, boilers, ducts, sprinklers, and electrical panels

Model elements prove to be the pivotal intersection of design aesthetics and practical function in Revit. Their visibility in design views offers a thorough and complete understanding of the building structure from inside out. However, there might be times when these elements are hidden due to various reasons, impeding visibility and potentially distorting the design interpretation, which brings us to our main discussion – how to unhide these elements. We will explore this in the upcoming sections.

2. Datum Elements

Datum elements serve as reference points in defining the project context throughout the design process. They provide a stable foundation for organizing and aligning model elements within the design. While they do not represent physical components of a building like model elements, datum elements play a crucial role in bringing structure and coherence to the project.

Datum elements function as an invisible framework for the model, ensuring that every member and component adheres to the planned geometry and structure. They guide the placement and alignment of model elements, improving the overall efficiency and precision of the design process. Some examples of datum elements include grids, levels, and reference planes.

Despite their invisible nature within the final model, their impact on the overall design coherence is irrefutable. And in some instances, these datum elements may also be hidden, causing hindrance to the design process.

3. View-specific Elements

View-specific elements in Revit play a vital role in shaping the way your design is documented and presented. As the name implies, these elements are unique to the views they are placed in and do not appear in other views. While they may not directly influence the building’s physical structure, view-specific elements enhance the design clarity and presentation by providing essential information or annotation to your design.

View-specific elements help communicate your design intent effectively, ensuring that every stakeholder and collaborator understands the intricacies of the project. They serve as supporting documentation for your model, aiding in both the design development and post-design stages of your project. Examples of view-specific elements are dimensions, detail lines, text notes, tags and symbols.

Causes of Hidden Elements in Revit

In a Revit project, elements can become hidden for various reasons. While hiding elements can be useful to focus on specific parts of a design or declutter a view, accidentally hidden elements can lead to confusion and affect design understanding. To address these issues, understanding the ways elements can be hidden is crucial. Here are common reasons for element concealment in a Revit project:

  • Element Hiding: Users might hide elements by choice to simplify views or emphasize certain aspects of the design. However, this can happen inadvertently if an element or category is mistakenly selected for hiding.
  • Visibility/Graphic Overrides: Elements can be hidden due to settings in Visibility/Graphics Overrides. If a category, subcategory, or specific settings are turned off, elements can disappear. These changes can impact visibility across all views or only affect a particular view.
  • Worksets: In collaborative environments, worksets control the visibility of different project parts. When a workset is turned off in a specific view, associated elements could vanish.
  • Filters and Phasing: Filters allow users to manage the visibility and appearance of elements based on specific properties. If a filter that affects a category is applied, elements within that category might inadvertently disappear. Phasing settings also can lead to element concealment, especially if the associated phase isn’t visible in a particular view.
  • View Range: The view range settings define the visible portion of a plan view. Elements outside this defined range can be hidden.
  • Detail Level and Graphic Display Options: Each view’s detail level controls element visibility. Adjustments to graphic display options can also lead to specific elements being hidden.
  • Linked Files: If the project includes linked files (like a linked Revit model), elements within those links could be hidden based on visibility settings in the host file.
  • Analytical Model: In structural design, elements might not appear if they lack an associated analytical model or if analytical visibility is turned off.

Unhiding Elements in Revit

There may be cases where certain elements in your Revit model get hidden unintentionally or become otherwise invisible, leading to incorrect or incomplete views of your model. To resolve such issues, Revit provides multiple methods to unhide elements. Here’s a step-by-step guide on how to unhide elements in Revit:

  • Unhide Individual Elements

Unhide individual elements step 1

  1. Via The Hide in View Option: Navigate to the view where the element is hidden. Select the Reveal Hidden Elements button on the View Control Bar (it’s represented as a light bulb icon). This will show hidden elements in a reddish tinge. Select the hidden element and right-click to show the context menu. Choose Unhide in view > Element.

Unhide individual elements step 2

2. Via The Visibility/Graphics Overrides Option: Go to the specific view where the element is hidden. On the View Control panel, select Visibility/Graphics. In the opened dialog, navigate to the respective tabs (Model Categories, Annotation Categories, etc.) and check the box next to the hidden element’s category.

  • Unhide Category of Elements

Go to the specific view where the category of elements is hidden. Select the Visibility/Graphics Overrides option on the View Control Bar. In the opened window, under the Model, Annotation, or Analyses tab, check the box of the category of the hidden elements to make them visible.

  • Unhide Worksets

This can be done by clicking on the Worksets button located in the Collaborate tab. In the opened dialog box, check the Visible box of the workset containing the hidden element.

  • Unhide Elements Based On Phasing

To unhide elements using phasing, go to the Properties panel of the view where the element is hidden. Under the Phasing section, check if the Phase Filter is set to Show All. If not, set it to Show All to unhide the elements. Make sure that the Phase and Phase Filter properties correctly match the phase of the hidden elements.

  • Unhide Elements In View Range

To unhide elements hidden due to View Range, navigate to the Properties panel of that specific view. Under Extents, click Edit under View Range. Adjust the value of View Depth or Bottom, and set Cut Plane height appropriately so that the hidden elements get included within this range.

Final Thoughts on How to Unhide Elements in Revit

In conclusion, mastering the various processes involved in working with hidden elements in Revit is imperative for successfully navigating and managing complex architectural projects. By understanding the causes of hidden elements, and being able to efficiently unhide these elements when necessary, you can ensure that your design models remain accurate, comprehensive, and easy to interpret by all stakeholders involved in the project. Utilizing Revit’s powerful features and being proficient in adapting to different visibility and settings will not only streamline your architectural design process but also significantly enhance the overall quality and presentation of your projects.
