How to Change Units in Autocad?

How to Change Units in Autocad?

AutoCAD, the leading computer-aided design (CAD) software, empowers architects, engineers, and designers to create precise drawings. However, to ensure accuracy, understanding how to change units in AutoCAD is crucial, especially if you have already begun a project and going back is not possible. So, have you ever wondered, how to change units in Autocad? This guide will walk you through the significance of unit settings, step-by-step unit changes, best practices, and troubleshooting tips. By the end, you’ll be equipped to produce reliable and accurate designs with ease. Let’s get started on mastering unit management in AutoCAD!

Understanding Units in AutoCAD

In AutoCAD, units play a critical role in ensuring the accuracy of your drawings. They determine how measurements in your design correspond to real-world dimensions, making it vital to set the right units for each project. AutoCAD offers various unit types, including architectural, engineering, decimal, and scientific units, catering to different design needs.

Architectural units are ideal for building design, using feet and inches, while engineering units provide precision with millimeters or centimeters. Decimal units offer versatility with meters or millimeters, and scientific units are suitable for specialized projects. Each unit type has its advantages and limitations, so selecting the most appropriate one is essential for precise and efficient designs.

Here’s a quick rundown of length measurement units and angel formats:

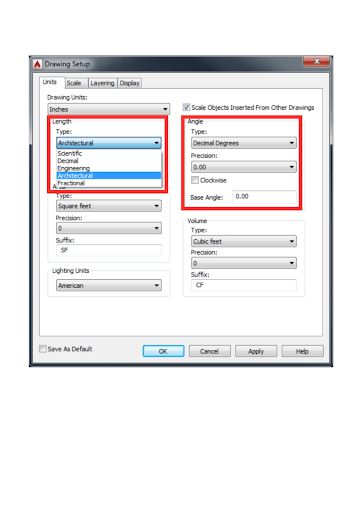

Measurement Units:Measurement Units Autocad Picture

  • Architectural
  • Scientific
  • Decimal
  • Engineering
  • Fractional

Angle Formats:

  • Decimal degrees
  • Degrees – minutes – seconds
  • Centesimal degrees
  • Radians
  • Topographic units

Methods of Changing Units in AutoCAD

When working with AutoCAD, the ability to modify units efficiently is a fundamental skill. Whether you’re starting a new project or need to adjust existing drawings, understanding the different methods for changing units can significantly enhance your workflow.

Here are the two most common methods for changing units in AutoCAD:

1. Using the UNITS Command

This command allows you to easily change the units of your drawing by specifying the desired unit type, such as decimal, feet and inches, or fractional. You can also adjust precision settings and scale factors to customize your units further. Units command in Autocad

Below is a step-by-step guide for using the UNITS command in AutoCAD:

  1. Within your CAD drawing, select any point and enter the UN command, then press Enter.
  2. In the UNITS dialog box, select the desired units from the Drawing Units drop-down list.
  3. Select the desired display format from the Display Units drop-down list.
  4. Enter the desired precision in the Precision field, such as decimal places or fractional denominators.
  5. Set the scale factor if necessary to convert between different unit types.
  6. Click OK to save your changes.

2. Using the Drawing Setup Dialog Box

Accessing the Units through the “Drawing Setup” dialog box to check and change the units within a drawing is simple. However, this method is recommended for more advanced users who need to customize multiple settings at once.  Drawing setup dialog box in Autocad

In the Drawing Setup dialog box, you can not only change the unit type and precision settings but also adjust other parameters such as angle measurement, dimension style, and text height. This allows for more comprehensive customization of your drawing settings to meet specific project requirements. Below are the steps for using the Drawing Setup dialog box:

  1. Click the Application Menu button or the AutoCAD logo at the top-left corner of the AutoCAD window.
  2. Select Drawing Utilities.
  3. Click the Units tab.
  4. Select the desired units from the Drawing Units drop-down list.
  5. Select the desired display format from the Display Units drop-down list.
  6. Enter the desired precision in the Precision field.
  7. Click OK to save your changes.

Best Practices and Troubleshooting Tips

Navigating through any software is easier when you have expert guidance at your fingertips. And in the dynamic realm of AutoCAD, mastering the best practices and having the know-how to troubleshoot common issues can make a world of difference in your design journey.

Here are the best practices and troubleshooting tips to keep in mind when changing units in AutoCAD. By adhering to these best practices and troubleshooting tips, you’ll be better equipped to handle unit changes in AutoCAD with confidence and efficiency, ensuring that your projects remain accurate and error-free throughout the design process.

Best Practices:

1. Plan Ahead

Before you start a project, consider the units you’ll be working with. Choosing the right units at the beginning can save you a lot of time and effort later on. Think about the scale of your drawings and the level of precision required.

2. Backup Your Work

Whenever you’re about to make significant changes, such as altering units, it’s a good practice to create a backup of your drawings. This ensures that you can revert to the previous state if something goes wrong.

3. Use Drawing Setup

The “Drawing Setup” option is your friend when changing units. It allows you to specify how existing objects should be scaled and how newly inserted drawings will behave. Take advantage of this feature to maintain accuracy throughout your project.

4. Consider Inserting into New Drawings

If you need to change units on-the-fly for a specific part of your project, consider inserting that portion into a new drawing with the desired units. This can help you avoid unintended scaling issues.

5. Master the DWGUNITS Command

The DWGUNITS command is a powerful tool for changing units. However, be sure to carefully follow the prompts and provide accurate information. Double-check your selections to avoid mistakes.

6. Check for Scale Discrepancies

After changing units, always review your drawings for any unintended scale changes. Make sure dimensions, distances, and proportions remain accurate.

7. Test with Simple Objects

If you’re unsure about changing units in a complex drawing, create a simple test drawing first. Experiment with different units and settings to see how they affect objects. This can help you understand the changes before applying them to your main project.

Troubleshooting Tips when Changing Units in Autocad:

1. Unexpected Scaling

If you notice that objects have scaled differently than expected after changing units, review your “Drawing Setup” settings and ensure you’ve selected the appropriate scaling options.

2. Inconsistent Dimensions

In some cases, dimensions may appear inconsistent or incorrect after changing units. Double-check your unit settings, and consider using the SCALE command to adjust dimensions manually.

3. Mismatched Inserted Drawings

When inserting drawings from external sources, ensure that the units of the inserted drawing match the units of your current project. Use the “Scale objects inserted from other drawings” option if needed.

4. Precision Errors

If you encounter precision errors, such as overlapping lines or misaligned objects, verify that the units and tolerances are set correctly in both the original drawing and the one you’re working on.

5. Corrupted Files

If you encounter issues that seem unusual or unexplainable, such as crashes or errors, it’s possible that the file itself is corrupted. Try opening a backup or a previous version to see if the problem persists.

Final Words on How to Change Units in Autocad

AutoCAD is your best friend in the world of precise design. And changing units seamlessly is your key to accurate creations. We hope this guide has helped you understand why units are important, how to switch them step by step, and gained more knowledge on the best practices and troubleshooting techniques.

Keep in mind that different projects require different units. But with the UNITS command and Drawing Setup, it’s easy to make changes that fit your skill level. But it’s not just about methods; it’s about mastery. Plan ahead, save your work often, and get to know the Drawing Setup tool. As you explore AutoCAD, know that unit changes aren’t just adjustments – they’re your way to precision and accuracy.
